Low drift rate. High spatial resolution.

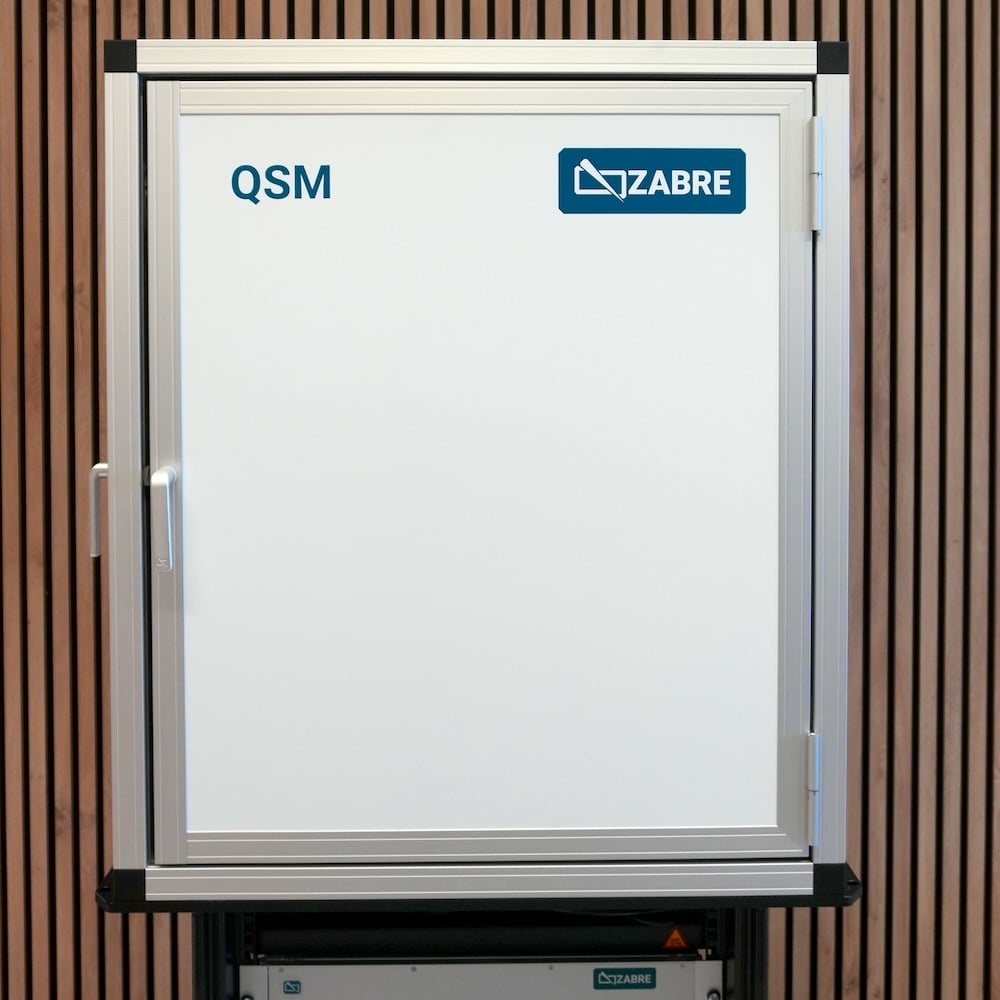

Temperature regulated enclosures
Scanning NV magnetometry allows high spatial resolution image taking down to a few tens of nanometers. The spatial resolution sets an upper bound for the drift rate of the NV microscope. We design our enclosures to keep the drift rate one order of magnitude lower than the achievable spatial resolution.
Choose your preferred enclosure for the QSM or the QCFM. Get in touch with us for custom designs.

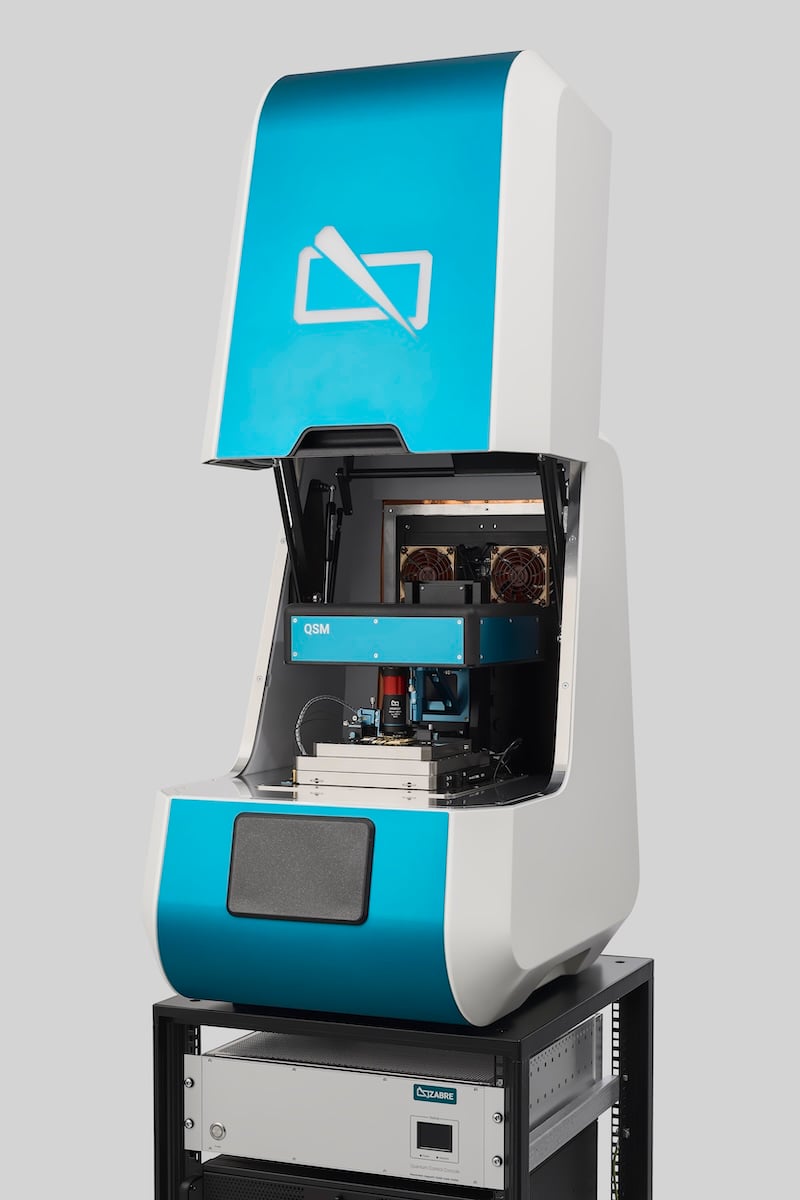

Enclosure – Elite edition
- Improved temperature regulation
- Small footprint
- Integrated sample electrical feedthroughs
- Cu-Ni mesh provides full EMI shielding

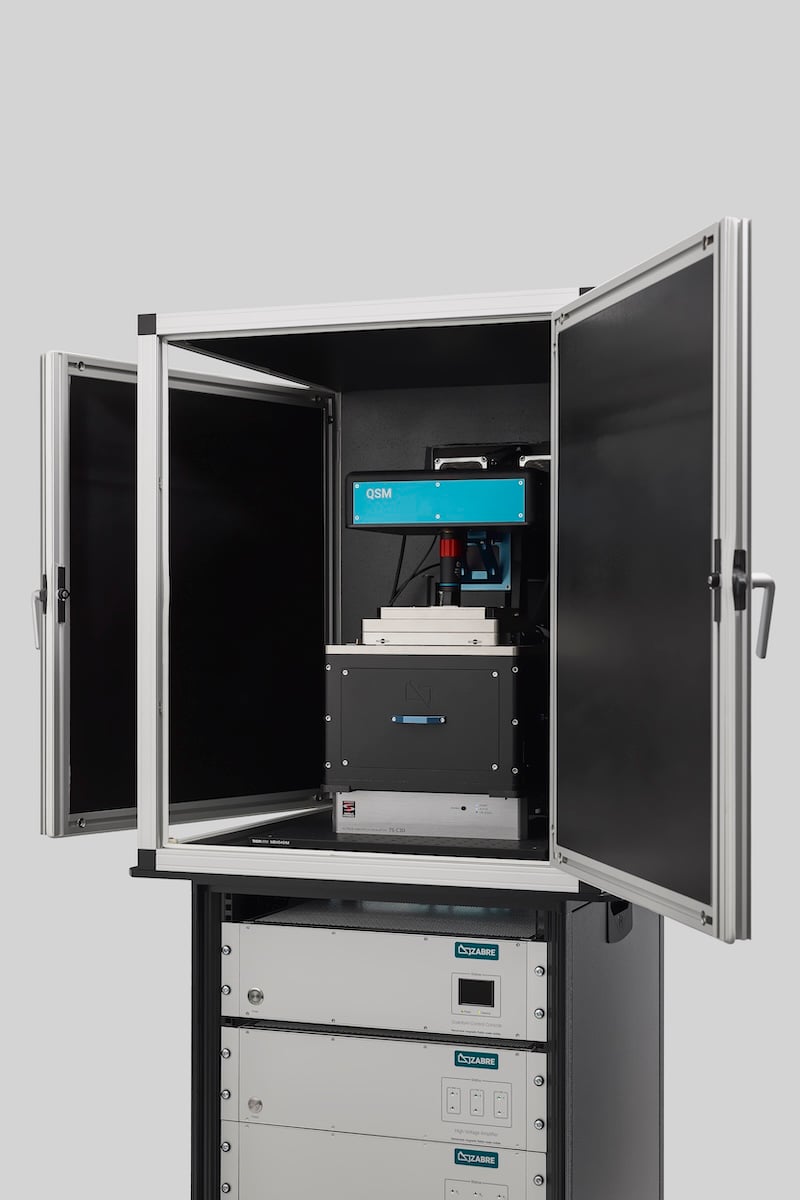

Enclosure – Flex edition
- Flexible optical and experimental access. Custom alterations available
- Required choice for the Sample Temperature Controller
Additional options
Temperature stabilization
Reduce drift rate to <5 nm over 10 hours
- Adding the temperature stabilization (<0.1 °C variation) to the enclosure minimizes sample drift and ensures reliable data.
- After a sample or tip exchange, the temperature regulation system begins stabilizing the air temperature to the desired operating setpoint. Full thermal equilibrium is reached when the microscope body matches the air temperature, typically within 12 to 24 hours. Once in equilibrium, the drift rate is less than a few nanometers per hour.

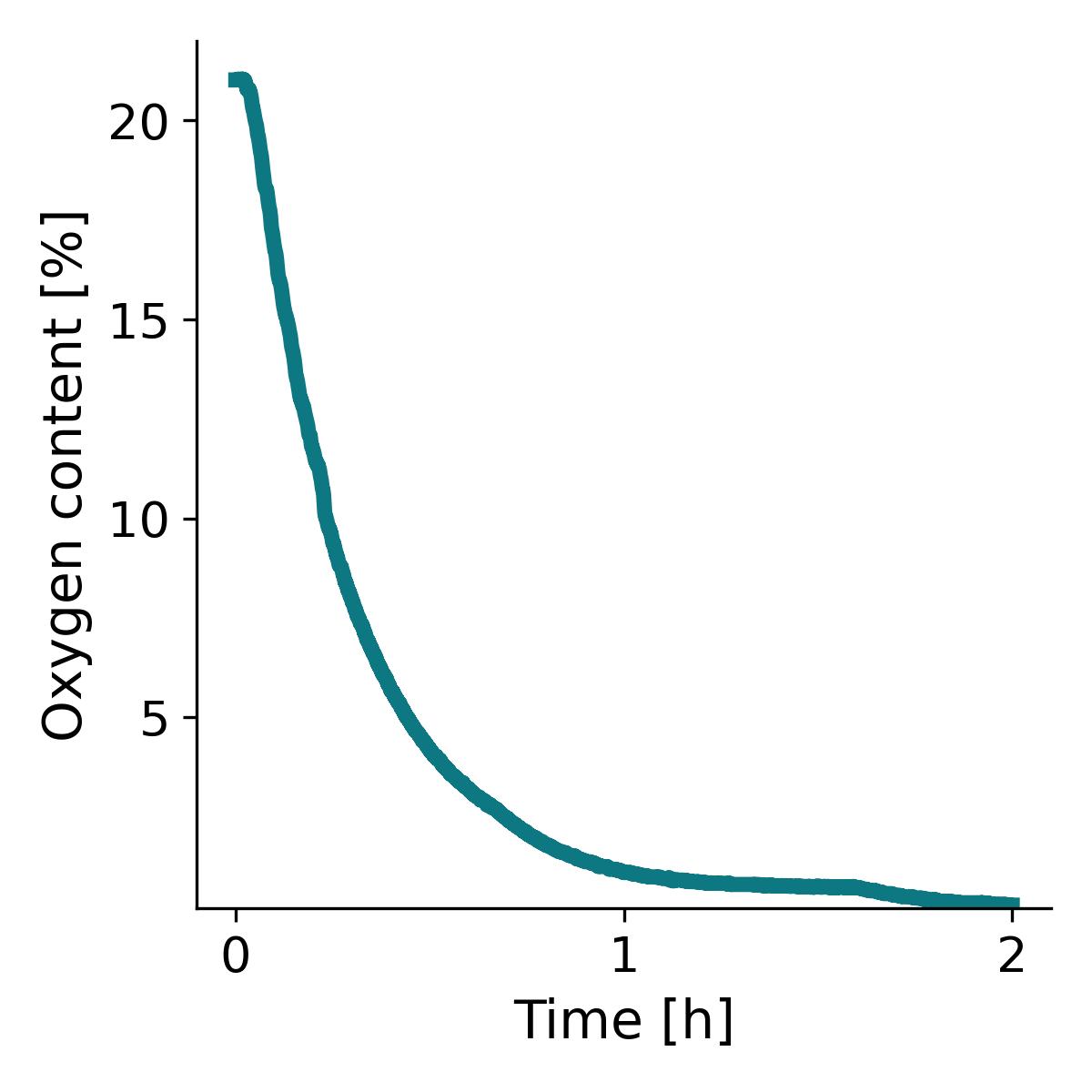

Inert atmosphere housing
Perform measurements in controlled environments
Our Flex edition enclosure can be customized to perform experiments in an oxygen-free environment, nitrogen or other atmosphere. Get in touch with us to discuss your experimental requirements.
